Blackmagic Design Mini Converter – HDMI to SDI 6G

Weight	90 kg
Dimensions	150 × 100 × 100 cm
Brand	Husqvarna

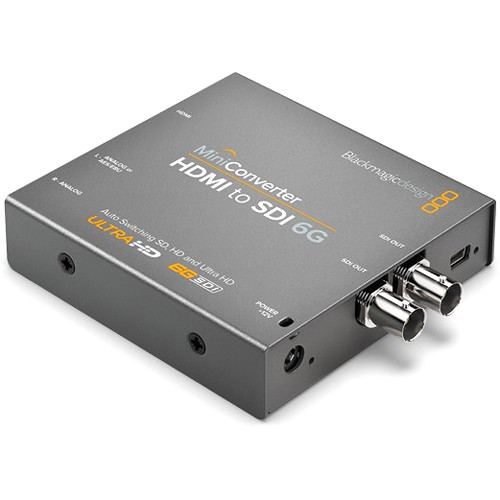

Beskrivelse Blackmagic Design Mini Converter – HDMI to SDI 6G Blackmagic Design Mini Converter – HDMI to SDI 6G spesifikasjoner This Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications. Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4″ input jacks which support four channels of AES/EBU digital audio or two channels of analog audio. The Mini Converter’s settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design’s website. The USB port also enables the firmware to be updated. The device is powered by an included 12V power supply and includes international socket adapters. Additional Features 4:2:2 Sampling and color precision HD scaler and SD down-conversion 24-bit, 48 kHz audio sampling Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards Endringer i teknisk spesifikasjon kan forekomme. Teknisk spesifikasjon fra leverandør: Blackmagic Kontakt oss gjerne for spørsmål om våre produkter. Vi hjelper deg med å velge de rette tekniske løsningene for din bedrifts behov. Du kan kontakte vårt salgsteam direkte ved å sende e-post til [email protected]. Se øvrig kontaktinformasjon her. Abonner på vårt nyhetsbrev og få tilbud og informasjon om nye produkter direkte fra oss. Registrer deg her.

Blackmagic Design Mini Converter – HDMI to SDI 6G
