Blackmagic Video Assist 7” 12G HDR

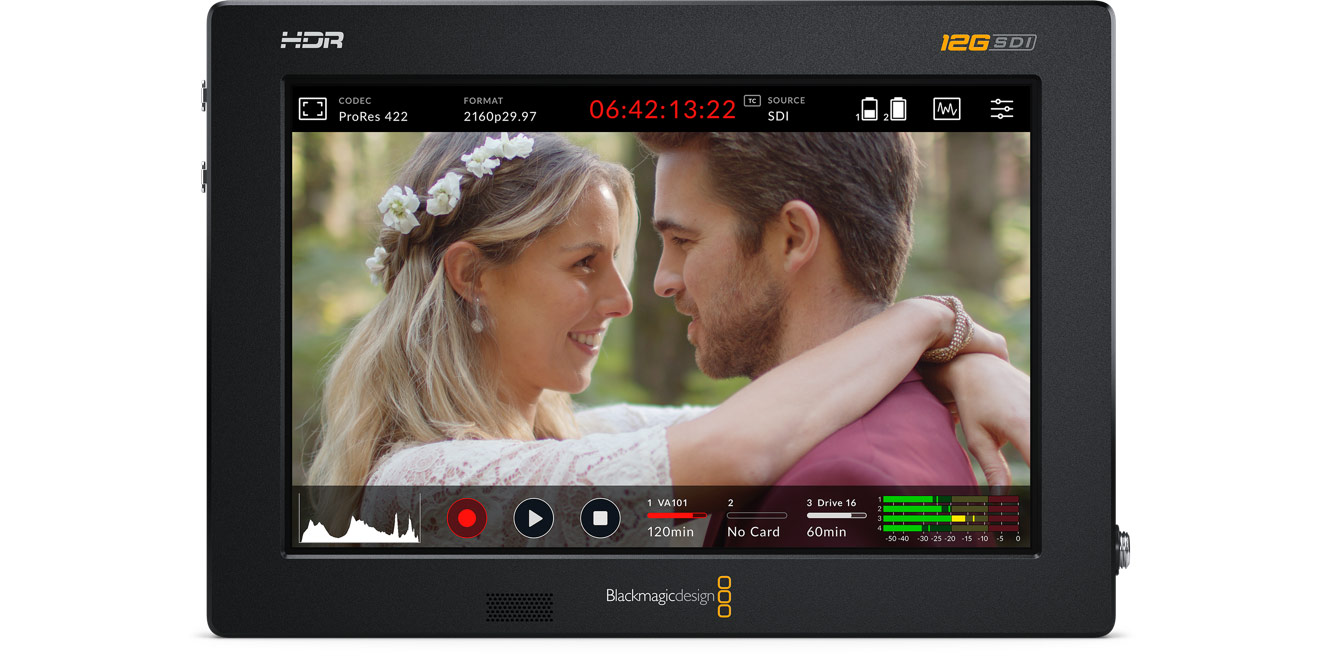

Beskrivelse Blackmagic Video Assist 7” 12G HDR Blackmagic Video Assist 7″ 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10-bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of -128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files! Connections SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0a Video Inputs 1 HDMI 2.0a Video Outputs 1 Analog Audio Inputs 2 x balanced mini XLR with phantom power Analog Audio Outputs 1 x 3.5 mm headphone jack. Built in Speaker Mono Screen Dimensions 7 inch 1920 x 1200. Screen Brightness 2500nits Screen Color P3 wide color gamut SDI Audio Inputs 16 channels embedded via 12G-SDI SDI Audio Outputs 16 channels embedded via 12G-SDI HDMI Audio Inputs 8 channels embedded via HDMI 2.0a HDMI Audio Outputs 8 channels embedded via HDMI 2.0a Remote Control 1 x 2.5mm LANC for Record Start and Stop. SD Interface Dual UHS-II SD slots Storage Type Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control. SDI Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084 SDI Metadata Support HD RP188 Audio Sampling Television standard sample rate of 48 kHz and 24-bit. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space REC 601, REC 709, REC 2020 HDR Support HDR10, Hybrid Log Gamma Multiple Rate Support SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s SDI RAW Blackmagic RAW HDMI Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI HDMI Color Precision 10-bit HDR Support HDR10, Hybrid Log Gamma Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. Media Media 2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording. Media Type SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supported Codecs Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1,Blackmagic RAW Constant Bitrate 8:1,Blackmagic RAW Constant Bitrate 12:1,Blackmagic RAW Constant Quality Q0,Blackmagic RAW Constant Quality Q5, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy,DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF. Control Recorder Control Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. External Control LANC, SDI and HDMI start/stop and timecode run. Blackmagic RAW Supported Cameras Panasonic AU-EVA1, Canon EOS C300 Mark II Software Software Included Blackmagic OS Scopes Scopes Waveform, RGB Parade, Vector, Histogram. Viewing Modes Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules. Operating Systems Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10. Power Requirements Power Supply 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included) Physical Specifications Environmental Specifications Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing Specifications subject to change without notice. Features description and technical specification from BLACKMAGIC.
